Ⅰ non-isolated 36W up-down led power supply, PFC>0.95 η>91% THD<12.3% Ⅱ output overload protection Ⅲ output short circuit protection Ⅴ over-temperature protection function Ⅵ applicable to 30W W 36W LED Downlight ceiling lamp wall lamp
|
Product No.
|
AC Input Range(Vac)
|
Max. Pout(W)
|
Vout Range(Vdc)
|
Full Power Vout Range(Vdc)
|
Iout(A)
|
THD(Typ.)
|
PF(Typ.)
|
Eff.(Typ.)
|
|

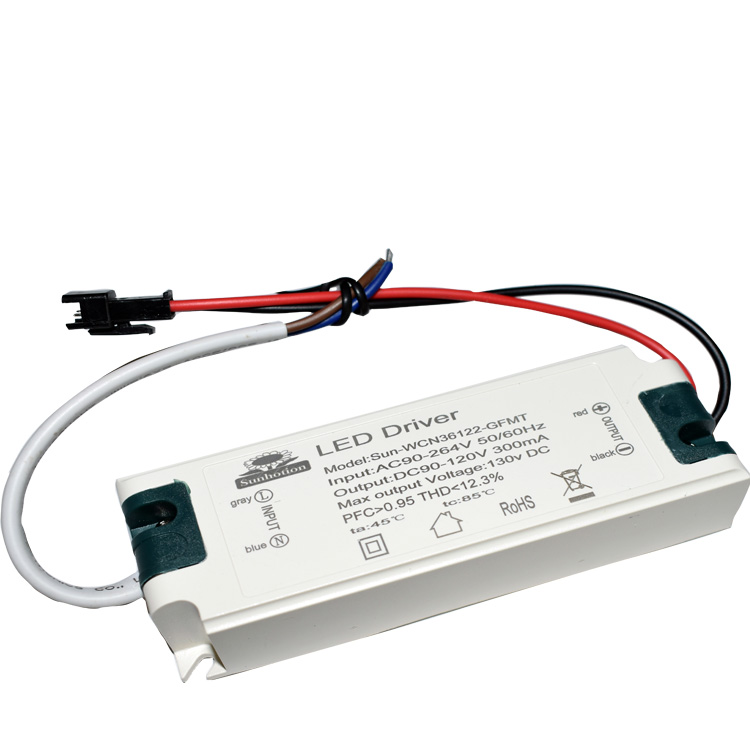

Sun-WCN36122-GFMT
|
AC90-265V
|
DC130V
|
DC90-120V
|
DC90-120V
|
300mA
|
<12.3%
|
>0.95
|
>91%
|
